V10 handling at Syndicate speeds.

The Nomad's reputation is built on consistently pushing the envelope on how lawless a single-crown bike can get while still remaining a capable daily driver.

The latest iteration nudged the travel and geometry further towards the outer limits. and we surprised ourselves at just how well-rounded it turned out.

The fourth generation design saw a dramatic shift to the lower-link mounted shock configuration. The shock rate is a short-travel version of the V10which means feather-light small bump sensitivity right off the bat. supportive mid-stroke. and overall progression that you'd normally only experience on a DH bike.

To handle all this newfound capability. the geometry was adapted too. It's longer and lower-slung to ensure maximum stability and confidence on absolutely everything. At the same time. the Nomad's still a trail bike. It pedals well and tackles valley-to-valley alpine runs and all-day missions without skipping a beata fact helped by its pedal-friendly seat tube angle and standard 170mm dropper post fit.

Key Features

  • Carbon frame
  • Wheel size: 27.5
  • Rear travel: 170mm
  • RockShox Super Deluxe R rear shock
Frame Specifications
  • Suspension System: VPP
  • Front Derailleur: No compatibility
  • Headset/Headtube: Integrated; IS41 upper. IS52 lower
  • Seat Post: 31.6mm
  • Seat Clamp: 36.4mm
  • Eye to Eye length: 230mm
  • Stroke: 60mm
  • Fork Compatibility: 170-180mm
  • BB Shell: 73mm Threaded
  • Max Tire Size: 2.5
  • Max Chainring Size: 36t
  • Chainline Spec: Boost
  • Max Chainring Size: 36t
  • Brake Types: Post Mount
  • Water Bottle Mounts: 1 inside main triangle
  • Shock Mounting Bolt Front: 8x20mm
  • Shock Mounting Bolt Rear: 8x30mm (compatible with standard or Rockshox bearing eyelet)

Build Kit Highlights

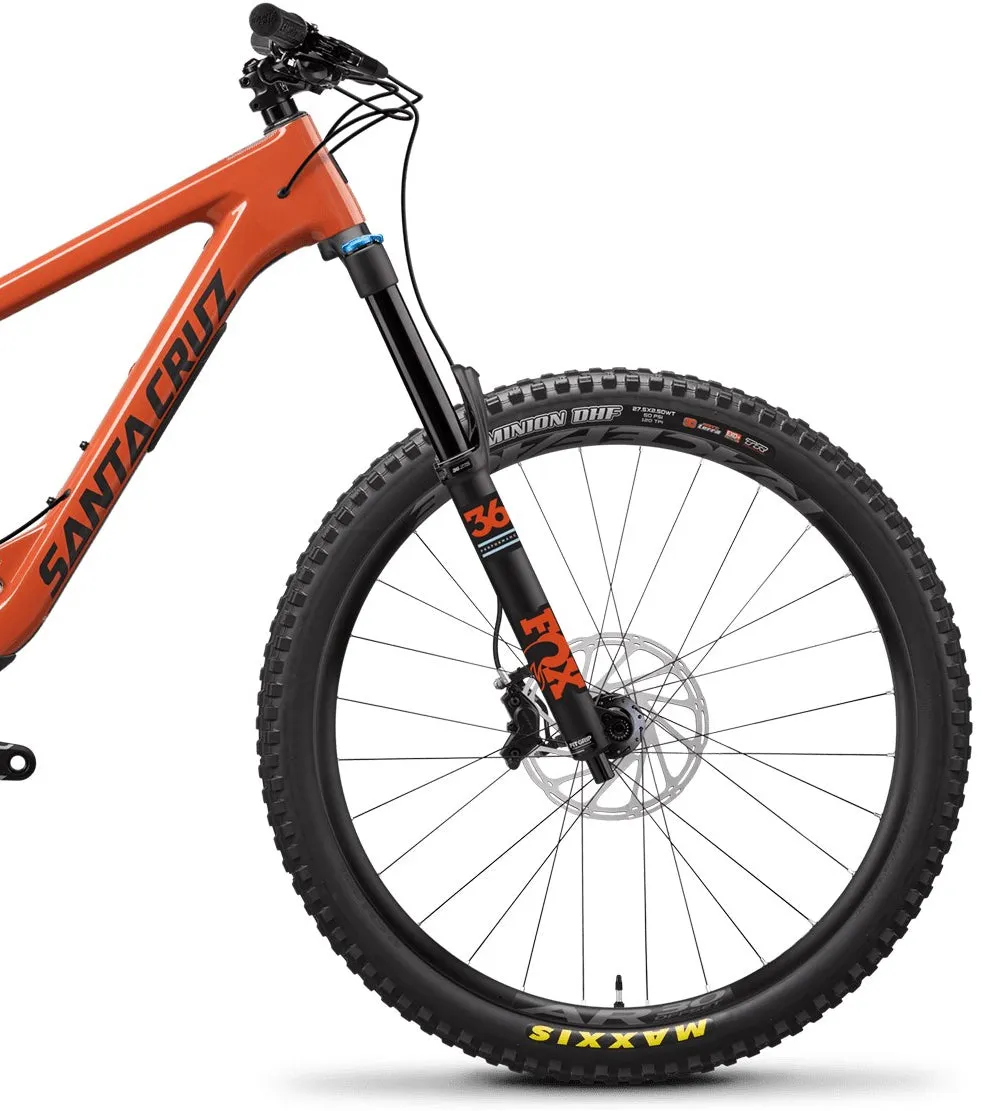

  • FOX 36 Float Performance 170 fork

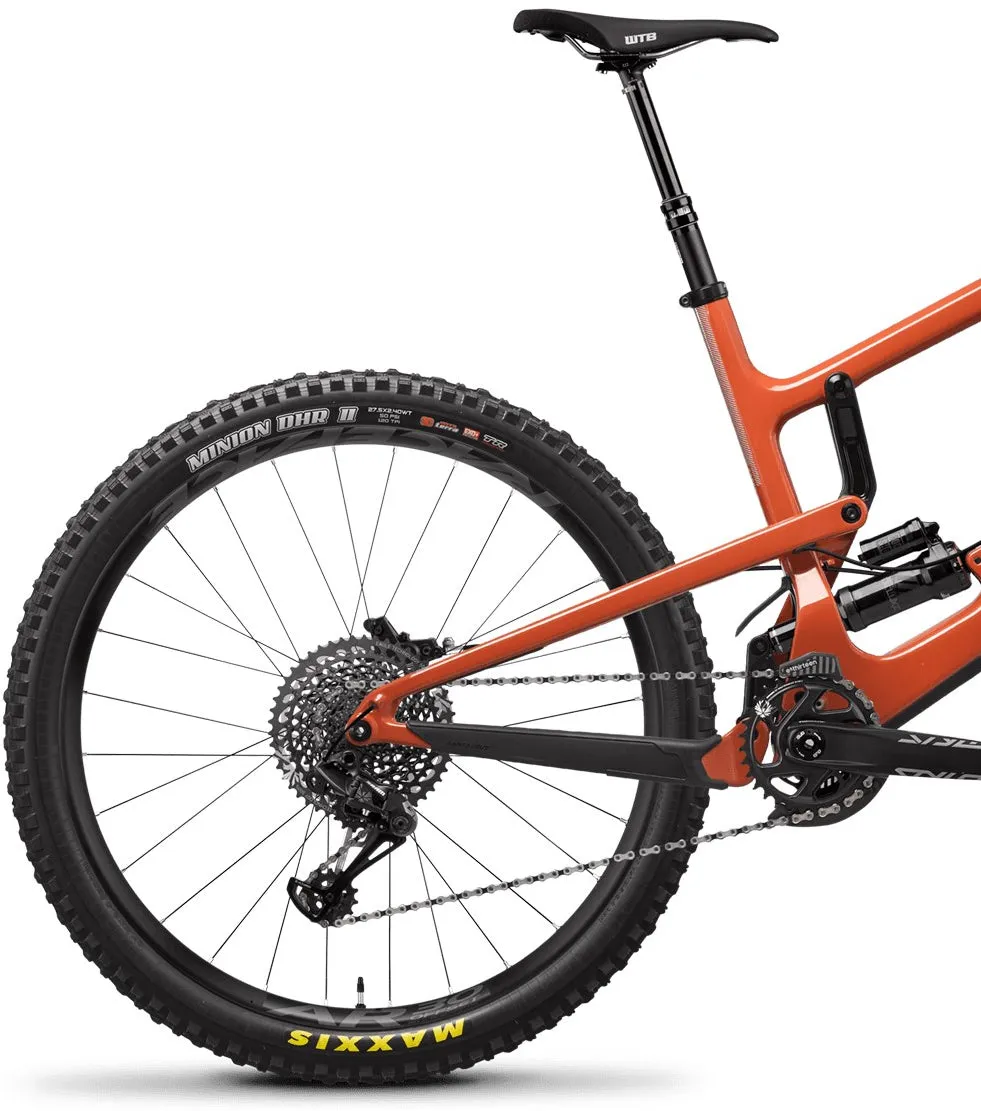

  • SRAM GX Eagle 12 speed drivetrain components
  • SRAM Code R brakes
  • RockShox Reverb Stealth 31.6 seatpost
  • RockShox Super Deluxe R rear shock
  • Approximately 14.12kg / 31.13lbs
Full specification can be found in the details tab.

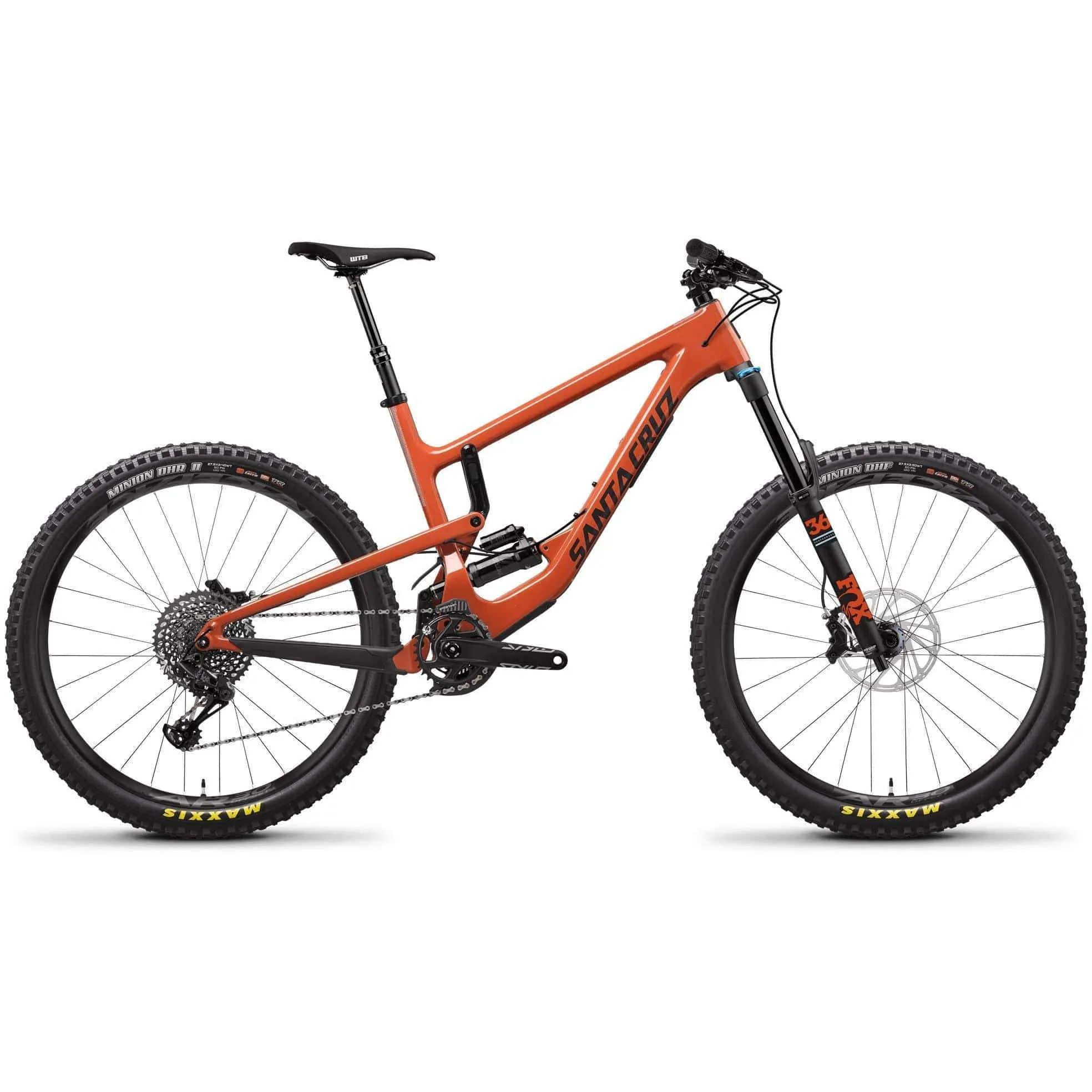

Santa Cruz Nomad 4 C S Full Suspension Mountain Bike 2019 - Orange
  • S
  • M
  • L
  • XL

$ 62.57

$ 48.13
